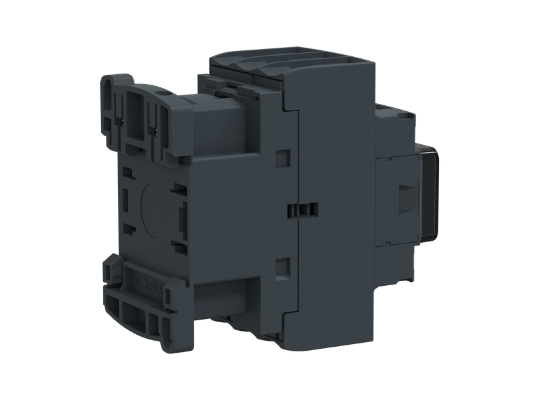

LC1D38M7

TeSys D contactor, 3 poles (3NO), for motor control applications up to 38A/440V AC-3/3e (18.5kW@400V).
It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Range of product:TeSys Deca
Product or component type:Contactor

contactor application:Motor control

Resistive load

utilisation category:AC-4

AC-1
control circuit voltage:220 V AC 50/60 Hz

rated operational current:50 A (at <60 °C) at <= 440 V AC AC-1 for power circuit

38 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
لون الواجهة الامامية ابيض هو المتوفر حاليا كما في الصورة(اللون الرمادي غير متوفر)

white color is available same image(grey color out of stock
